Motherboard B850 Gigabyte Aorus Elite Wifi

GIGABYTE B850 AORUS ELITE WIFI7 Motherboard

The GIGABYTE B850 AORUS ELITE WIFI7 is an ATX motherboard designed for custom gaming PCs and performance-focused desktop systems built around the AMD AM5 platform. Featuring the AMD B850 chipset, it supports compatible AMD AM5 processors and DDR5 memory, providing a modern foundation for gaming, multitasking and demanding applications. Its standard 305 × 244 mm ATX form factor offers flexibility for graphics cards, storage drives and additional components. Integrated Wi-Fi 7, Bluetooth 5.4 and Realtek 2.5GbE LAN provide modern networking options for wireless and wired connections. With PCIe 5.0 support, three M.2 slots and up to 256GB of memory capacity, the GIGABYTE B850 AORUS ELITE WIFI7 offers a versatile platform for building a capable desktop with flexible storage, connectivity and future upgrade options.

AMD AM5 Platform and DDR5 Memory

Built around the AMD B850 chipset and AM5 socket, this motherboard supports compatible AMD AM5 processors. It features four DDR5 DIMM slots with dual-channel memory support and accommodates up to 256GB of DDR5 memory. Supported memory speeds reach DDR5-8200 through overclocking, although achievable speeds depend on the processor, memory kit and system configuration. This memory capacity and speed support provide flexibility for gaming, multitasking, content creation and other demanding desktop workloads. The four-slot layout also gives builders options when selecting memory capacity and planning future upgrades. By combining the AM5 platform with high-speed DDR5 support, the GIGABYTE B850 AORUS ELITE WIFI7 provides a modern foundation for compatible processors and memory configurations across a range of custom gaming and performance-oriented PCs.

PCIe Expansion and M.2 Storage

The GIGABYTE B850 AORUS ELITE WIFI7 provides expansion options for graphics hardware and additional components. Its slot configuration includes one PCIe 5.0 x16 slot for a compatible graphics card and two PCIe 3.0 x1 slots for supported expansion devices. For storage, the motherboard includes three M.2 slots, comprising one PCIe 5.0 x4 connection and two PCIe 4.0 x4 connections for compatible solid-state drives. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA storage devices. This combination allows builders to plan storage around their requirements, from fast primary storage for the operating system and games to additional drives for applications and files. Together with the full-size ATX layout, these expansion and storage interfaces provide flexibility for a variety of custom desktop configurations.

Wi-Fi 7, Bluetooth 5.4 and 2.5GbE Networking

Integrated networking gives the GIGABYTE B850 AORUS ELITE WIFI7 flexible connectivity for modern home, gaming and work environments. Its Wi-Fi 7 support operates across the 2.4GHz, 5GHz and 6GHz bands with compatible wireless equipment, offering a modern option for wireless networking. Bluetooth 5.4 enables connections to supported wireless accessories and peripherals, while Realtek 2.5GbE LAN provides a wired Ethernet connection with a rated speed beyond standard Gigabit Ethernet when paired with suitable network equipment. Actual connection performance depends on the router, switch, cabling, signal conditions and internet service. With Wi-Fi, Bluetooth and wired Ethernet integrated directly into the motherboard, builders can choose the networking method that best suits their setup without needing separate add-in cards for these built-in functions.

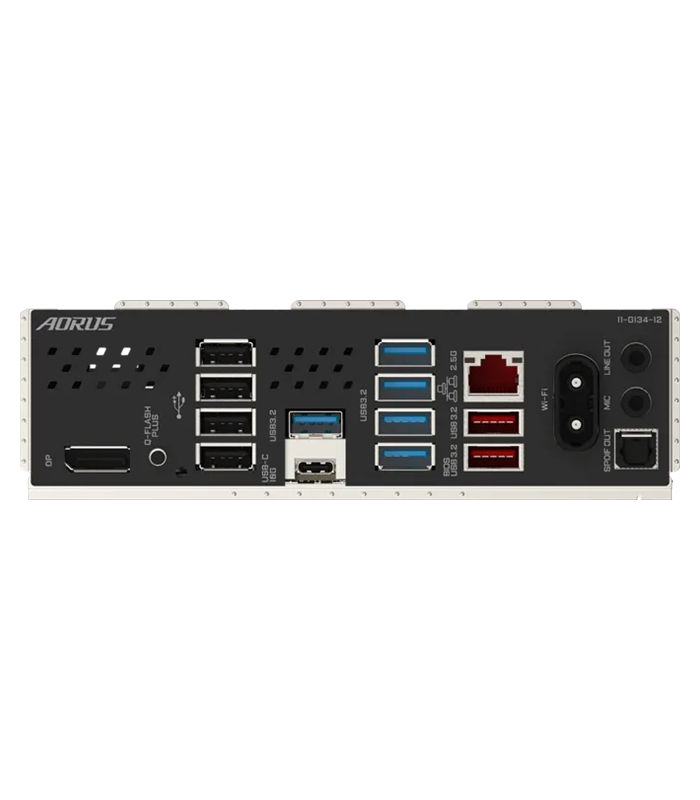

USB Connectivity, Display Outputs and Audio

The motherboard includes a selection of USB interfaces for connecting compatible peripherals, external storage and accessories. Its listed connections include USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 Type-A and USB 2.0, providing options for devices with different connection and transfer requirements. Display connectivity consists of one DisplayPort 1.4 output and one HDMI output, with the HDMI functionality dependent on the installed processor. For audio, the motherboard supports High Definition Audio with up to 7.1-channel output using compatible equipment. These features complement its AM5 processor support, four DDR5 memory slots, PCIe 5.0 graphics connection and three M.2 slots. With modern wireless networking, high-speed Ethernet and a broad range of connectivity options, the GIGABYTE B850 AORUS ELITE WIFI7 provides a flexible foundation for a custom gaming PC or performance desktop.
