Water Cooling Thermalright Mjolnir Vision 360

360mm AIO Liquid CPU Cooler

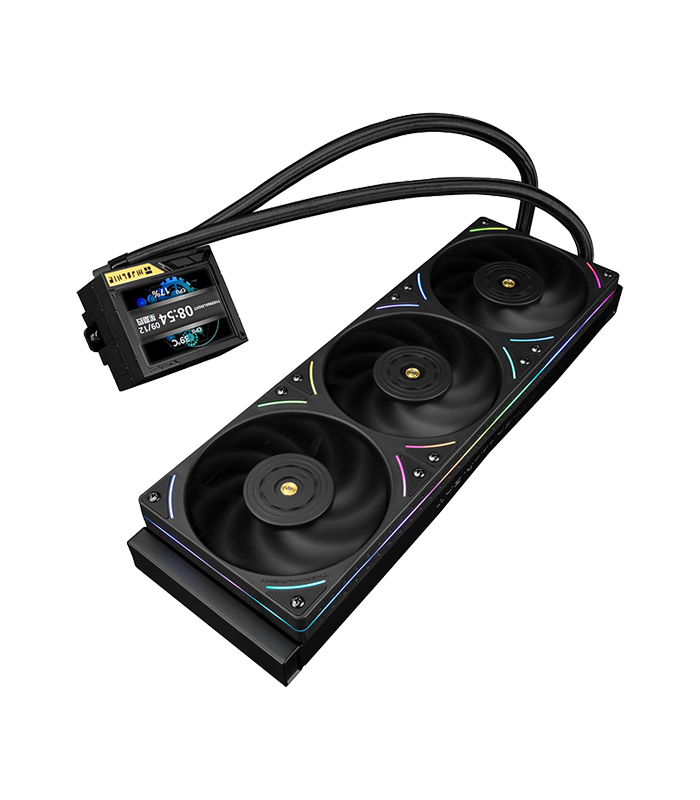

The Thermalright Mjolnir Vision 360 UB PRO ARGB Black is a high-performance 360mm all-in-one liquid CPU cooler designed for modern gaming and performance-focused desktop systems. It combines a large 397 × 120 × 27 mm aluminium radiator with a powerful integrated pump and three dedicated Thermalright TL-UB36 fans. The pump operates at 3,000 RPM ±10% and uses a 4-pin PWM connector for motherboard control. Its pump housing measures 85 × 74 × 65 mm, while the 360mm radiator provides a substantial surface area for transferring heat away from the CPU. With compatibility across a wide range of Intel and AMD sockets, including the latest LGA1851 and AM5 platforms, the Mjolnir Vision 360 UB PRO provides a versatile liquid-cooling solution for demanding PC builds.

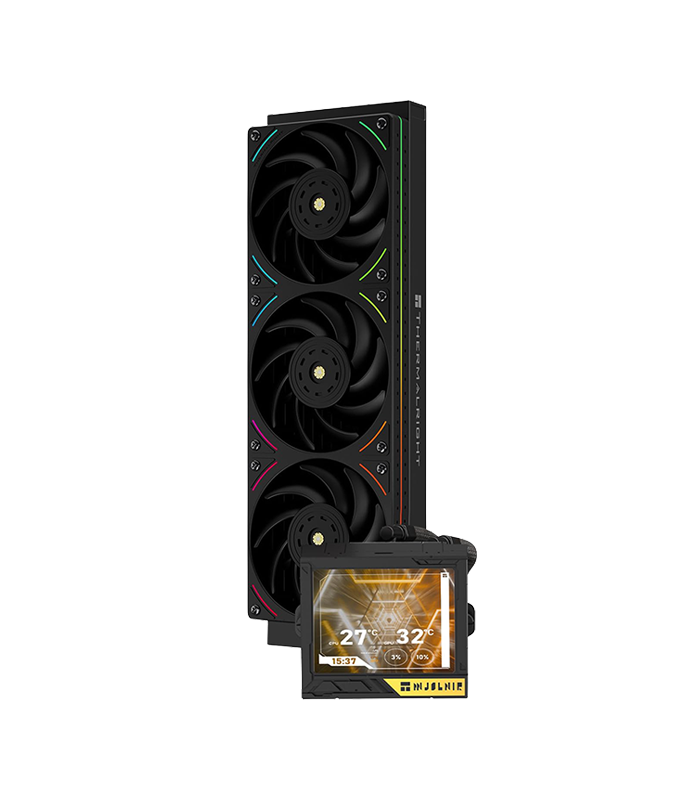

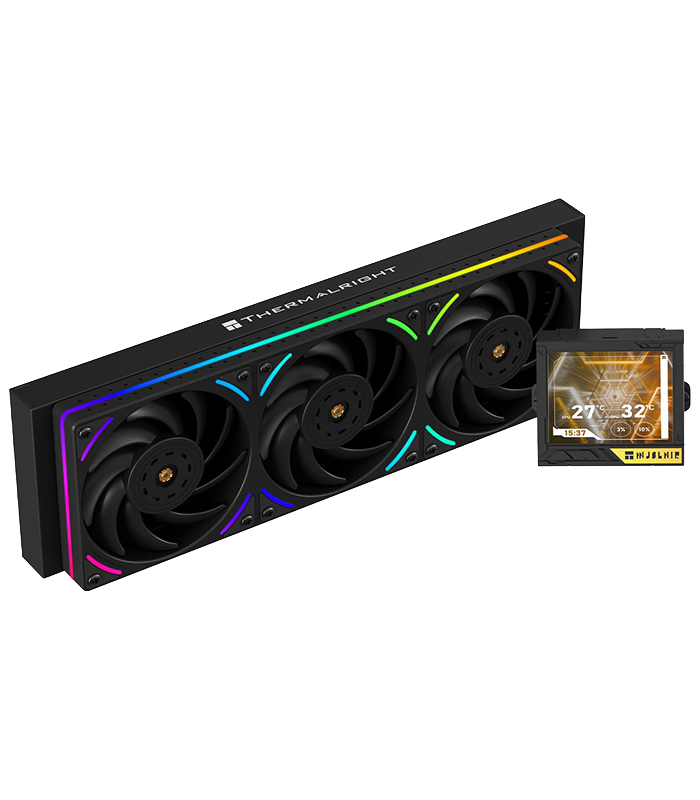

Integrated 3.5-Inch LCD Display

One of the standout features of the Mjolnir Vision 360 UB PRO is its integrated 3.5-inch LCD display built directly into the pump assembly. The display provides a 640 × 480 resolution, adding a dedicated visual element to the CPU cooling system while giving the cooler a distinctive appearance inside a modern gaming PC. The display is integrated into the 85 × 74 × 65 mm pump housing, creating a compact combination of cooling hardware and visual functionality. This design allows the pump area to become a focal point of the build rather than simply serving as a concealed cooling component. Alongside the LCD display, the cooler features a 3-pin 5V ARGB connection, allowing the lighting to complement other illuminated components and accessories in a compatible system.

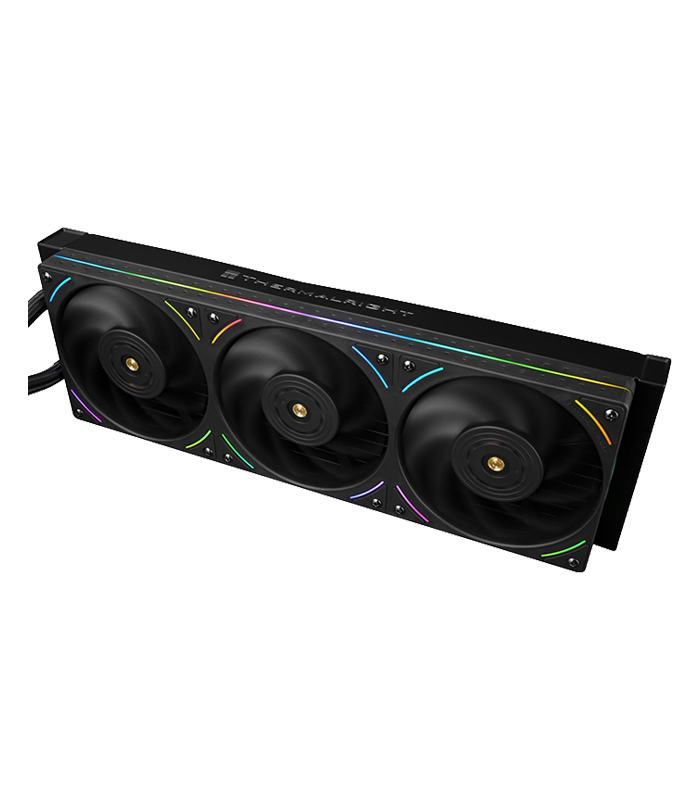

Thermalright TL-UB36 Triple-Fan Array

The cooler is equipped with three Thermalright TL-UB36 fans arranged across the 360mm radiator. Each fan measures 360 × 120 × 25 mm as part of the integrated three-fan radiator configuration and operates at 2,150 RPM ±10%. The fans provide up to 69 CFM airflow each, giving the complete radiator assembly a substantial airflow capacity for moving heat through the aluminium radiator. Static pressure is rated at 2.87 mm H₂O, supporting airflow through the radiator's fin structure. The fans use Thermalright's S-FDB V2 Bearing and connect through 4-pin PWM connectors, allowing compatible motherboard fan headers to regulate their operation. With a specified noise level of just 27 dBA, the TL-UB36 fan configuration combines high-speed operation with a defined acoustic specification.

Efficient 360mm Radiator Cooling

The 397 × 120 × 27 mm aluminium radiator forms the main heat-dissipation component of the Mjolnir Vision 360 UB PRO cooling system. Coolant transfers heat away from the CPU through the pump and liquid loop before reaching the radiator, where the three TL-UB36 fans move air through the aluminium fin structure. The pump operates at 3,000 RPM ±10%, providing active circulation throughout the AIO system. The radiator's 360mm format offers a large cooling surface while maintaining a standard 27mm radiator thickness. Combined with three 120mm-class fans delivering up to 69 CFM each and 2.87 mm H₂O static pressure, the cooler is designed for systems where substantial CPU cooling capability is required. The 4-pin PWM pump and fan connectors also provide straightforward integration with compatible motherboard headers.

ARGB Lighting and Clean Black Design

The Mjolnir Vision 360 UB PRO ARGB Black combines its performance-focused cooling hardware with addressable RGB lighting for a more distinctive PC build. The cooler uses a 3-pin 5V ARGB connector, allowing the lighting to be connected to a compatible motherboard or lighting controller. The black finish gives the cooler a versatile appearance that can complement a wide range of gaming PC components, while the integrated LCD display provides an additional visual focal point around the CPU area. The three Thermalright TL-UB36 fans maintain a consistent appearance across the 360mm radiator, creating a clean and unified installation. With the LCD pump display, ARGB lighting and black cooling assembly working together, the Mjolnir Vision 360 UB PRO is suited to users who want both substantial liquid cooling hardware and a visually distinctive centrepiece for their PC.

Wide Intel and AMD Socket Compatibility

The Thermalright Mjolnir Vision 360 UB PRO supports a broad selection of Intel and AMD desktop processor platforms. Intel compatibility includes LGA115X, LGA1200, LGA1700, LGA1851, LGA2011 and LGA2066, covering multiple generations of desktop processors. On AMD systems, the cooler supports both AM4 and AM5 sockets. This broad compatibility makes the 360mm AIO suitable for a wide range of gaming, workstation and performance-oriented PC configurations. Before installation, the chosen case should have suitable clearance for the 397 × 120 × 27 mm radiator and corresponding fan assembly. The pump connects through a 4-pin PWM connector, while the TL-UB36 fans also use 4-pin PWM connections and the lighting uses a 3-pin 5V ARGB connector. This combination provides straightforward integration with compatible modern desktop platforms.
