Motherboard B850 ASUS TUF Gaming Wifi

ASUS TUF GAMING B850-PLUS WIFI Motherboard

The ASUS TUF GAMING B850-PLUS WIFI is an ATX motherboard designed for gaming PCs and performance-focused desktop systems built around the AMD AM5 platform. Featuring the AMD B850 chipset, it supports compatible AMD AM5 processors and DDR5 memory, providing a modern foundation for demanding gaming and everyday computing. Its standard 305 × 244 mm ATX form factor offers flexibility for graphics cards, storage drives and additional expansion hardware. The motherboard combines a powerful 14+2+1 power stage design rated at 80A with integrated Wi-Fi 7, Bluetooth 5.4 and 2.5Gb Ethernet networking. With PCIe 5.0 support, three M.2 slots and a comprehensive selection of USB connections, it offers a versatile platform for builders looking to create a custom gaming PC with modern connectivity and room for future upgrades.

AMD AM5 Platform and DDR5 Memory

Built around the AMD B850 chipset and AM5 socket, the ASUS TUF GAMING B850-PLUS WIFI supports compatible AMD AM5 processors. It features four DDR5 DIMM slots with dual-channel memory support and accommodates up to 256GB of DDR5 memory. Supported memory speeds reach DDR5-8000+ through overclocking, although achievable speeds depend on the processor, memory kit and system configuration. The four-slot layout gives builders flexibility when choosing memory capacity for gaming, multitasking, content creation and demanding desktop applications. It also provides options for planning future memory upgrades as system requirements change. Combined with the AM5 platform and its power delivery design, this motherboard provides a modern foundation for compatible processors and high-speed DDR5 configurations in custom gaming and performance-oriented PCs.

Power Delivery and PCIe Expansion

The motherboard features a 14+2+1 power stage design rated at 80A, providing its specified power delivery configuration for compatible AM5 processors. For expansion, it includes one PCIe 5.0 x16 slot for a compatible graphics card, one PCIe 4.0 x16 slot operating in x4 mode and two PCIe 4.0 x1 slots. This arrangement provides options for installing graphics hardware and supported expansion cards according to your build requirements. The ATX form factor offers a full-size layout for assembling a custom desktop system with multiple components. When planning a build, check the dimensions of your selected graphics card and other hardware against your case and expansion requirements. Together, the power delivery specification and PCIe slot selection make the ASUS TUF GAMING B850-PLUS WIFI a flexible foundation for a modern gaming PC.

M.2 Storage and Modern Networking

The ASUS TUF GAMING B850-PLUS WIFI provides three M.2 slots for compatible solid-state drives, including one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots. This allows builders to configure fast storage for the operating system, games, applications and other files. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA storage devices. For networking, the motherboard integrates Wi-Fi 7 for compatible wireless networks, Bluetooth 5.4 for supported wireless accessories and Realtek 2.5Gb Ethernet for wired connections. Actual networking performance depends on the connected equipment, network configuration and environment. With multiple storage interfaces and both wired and wireless networking available on the board, the motherboard supports a variety of gaming, entertainment and productivity setups without requiring separate networking cards for its integrated functions.

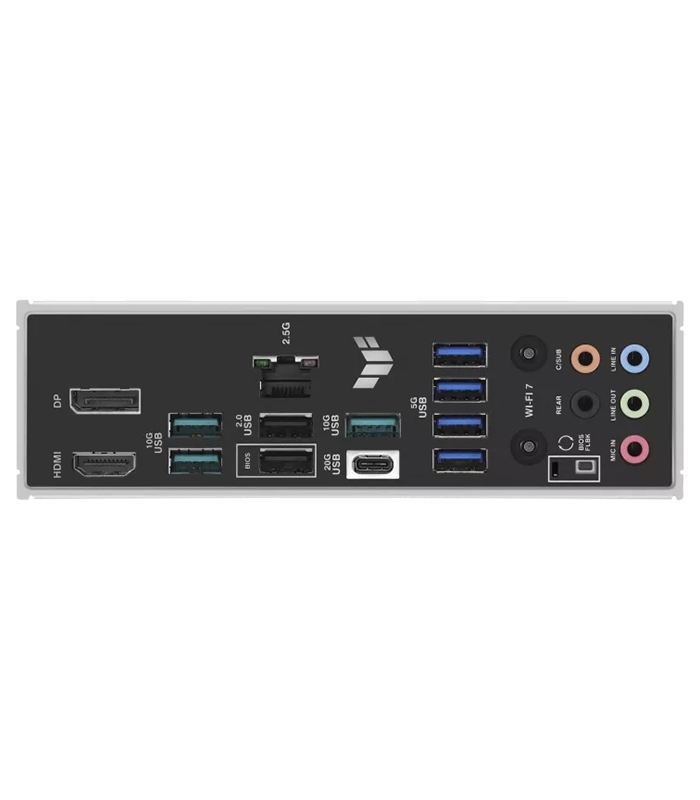

USB Connectivity, Display Outputs and Audio

The motherboard includes a range of USB connections for compatible peripherals, external storage and accessories. Its listed interfaces include USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A and USB 2.0, supporting devices with different connectivity requirements. Display connectivity consists of one DisplayPort 1.4 output and one HDMI 2.1 output; using these motherboard display outputs requires a compatible processor with integrated graphics. For audio, the board features the Realtek ALC1220P codec with 7.1-channel HD audio, supporting compatible audio equipment for gaming, entertainment and communication. These connections complement the motherboard's AM5 platform, DDR5 memory support, PCIe expansion and M.2 storage options. With modern USB interfaces, integrated networking and high-definition audio, the ASUS TUF GAMING B850-PLUS WIFI provides a versatile foundation for a custom gaming or performance desktop.
