Motherboard B850 MSI Gaming Plus Max Wifi

MSI MAG B850 GAMING PLUS MAX WIFI Motherboard

The MSI MAG B850 GAMING PLUS MAX WIFI is an ATX motherboard designed for custom gaming PCs and performance-focused desktop systems built around the AMD AM5 platform. Powered by the AMD B850 chipset, it supports compatible AM5 processors and DDR5 memory, providing a modern foundation for gaming, multitasking and demanding desktop applications. Its full-size ATX layout offers flexibility for graphics cards, storage drives and additional expansion hardware. Integrated Wi-Fi 7, Bluetooth 5.4 and 5GbE LAN provide versatile networking options for both wireless and wired setups. With PCIe 5.0 expansion, three M.2 slots and support for up to 256GB of memory, this motherboard is well suited to builders looking for modern connectivity, flexible component selection and room to upgrade their custom PC over time.

AMD AM5 Platform and DDR5 Memory

Built around the AMD B850 chipset and AM5 socket, the MSI MAG B850 GAMING PLUS MAX WIFI supports compatible AMD AM5 processors. It features four DDR5 DIMM slots with dual-channel memory support and accommodates up to 256GB of DDR5 memory. Supported memory speeds reach DDR5-8400+ through overclocking, although achievable speeds depend on the installed processor, memory kit and system configuration. This combination gives builders flexibility when selecting memory for gaming, multitasking, content creation and other demanding desktop workloads. The four-slot layout also provides options for planning memory capacity and future upgrades. By combining the AM5 platform with high-speed DDR5 support, the motherboard offers a modern foundation for a range of compatible gaming and performance-oriented PC configurations.

PCIe Expansion and M.2 Storage

The motherboard provides several expansion options for graphics hardware and additional components. Its slot configuration includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot operating in x4 mode and one PCIe 3.0 x1 slot. For storage, it features three M.2 slots for compatible solid-state drives, allowing builders to configure storage for the operating system, games, applications and personal files. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA drives. This combination supports different storage arrangements, from a primary M.2 drive to multiple drives for extra capacity and organisation. Together with its ATX form factor and DDR5 memory support, the MSI MAG B850 GAMING PLUS MAX WIFI offers flexibility for custom builds with varying performance, expansion and storage requirements.

Wi-Fi 7, Bluetooth 5.4 and 5GbE LAN

Integrated networking gives the MSI MAG B850 GAMING PLUS MAX WIFI versatile connectivity for modern gaming and desktop environments. Its Wi-Fi 7 support provides wireless networking with compatible routers and access points, while Bluetooth 5.4 enables connections to supported wireless accessories and peripherals. For wired networking, the motherboard includes 5GbE LAN, supporting network speeds beyond standard Gigabit Ethernet when paired with suitable network equipment. Actual connection speeds depend on the router or switch, cabling, network configuration and internet service. With wireless networking, Bluetooth and high-speed Ethernet integrated directly into the board, builders can choose the connection method that best suits their setup without requiring separate add-in cards for these functions. This combination is suitable for a variety of home gaming, entertainment and productivity environments.

USB Connectivity and 7.1-Channel HD Audio

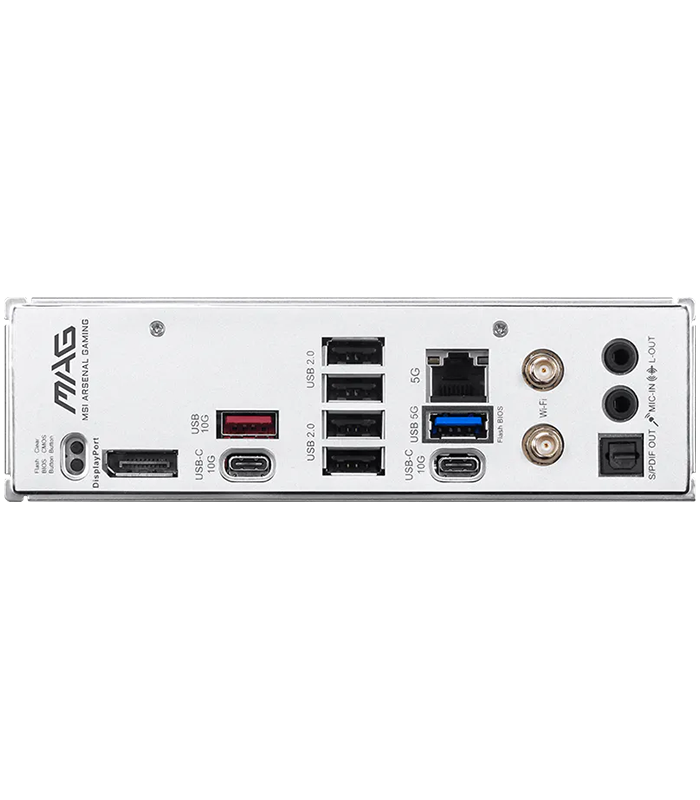

The MSI MAG B850 GAMING PLUS MAX WIFI includes a selection of USB connections for compatible peripherals, external storage and accessories. Its listed interfaces include USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0, offering options for devices with different connection and transfer requirements. Available performance depends on the specific port and connected device. For sound, the motherboard supports 7.1-channel HD audio with compatible equipment, making it suitable for gaming headsets, speakers and other audio devices. These features complement its AM5 processor support, four DDR5 memory slots, PCIe expansion and three M.2 connections. With modern networking and a broad selection of connectivity options, this motherboard provides a flexible foundation for building a custom gaming PC or performance desktop tailored to your component choices.
