Graphics Card MSI Ventus RTX 5070

NVIDIA GeForce RTX 5070 Blackwell Graphics

The MSI GeForce RTX 5070 12G VENTUS 2X OC combines the NVIDIA GeForce RTX 5070 GPU with the advanced NVIDIA Blackwell architecture to deliver high-performance graphics for modern gaming and demanding applications. With 6,144 CUDA cores and a boost clock of up to 2,542 MHz, the graphics card is designed to provide responsive performance across demanding gaming workloads. MSI also specifies an Extreme Performance clock of 2,557 MHz when configured through MSI Center, giving users an additional performance setting. The card uses a PCI Express 5.0 interface and is built around a modern graphics platform designed for current-generation desktop systems. With its compact dual-fan VENTUS 2X design, the RTX 5070 provides a balance between high-end graphics capability, practical dimensions and efficient cooling for a wide range of gaming PC configurations.

12GB GDDR7 High-Speed Memory

The MSI RTX 5070 VENTUS 2X OC is equipped with 12GB of GDDR7 graphics memory connected through a 192-bit memory bus. Its memory operates at an effective speed of 28 Gbps, providing substantial bandwidth for modern games, high-resolution textures and graphics-intensive applications. The 12GB capacity gives the graphics card sufficient dedicated memory for demanding gaming configurations while supporting the requirements of contemporary visual workloads. Combined with the Blackwell architecture and 6,144 CUDA cores, the memory subsystem is designed to provide consistent performance across a broad range of games and applications. The card's PCI Express 5.0 interface further complements its modern specification, providing a current-generation connection between the graphics card and compatible motherboard. Together, these technologies create a capable graphics platform for users building a modern gaming or performance-focused desktop PC.

MSI VENTUS 2X Dual-Fan Cooling

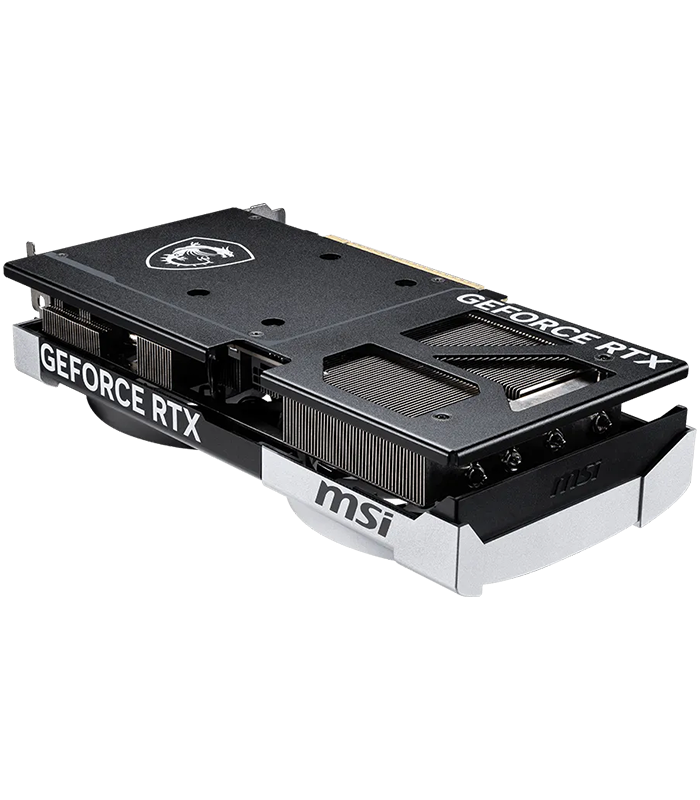

The VENTUS 2X cooling system uses a dual-fan configuration to manage the thermal output of the RTX 5070 GPU during demanding workloads. The graphics card has a specified 250W power consumption, with the cooling design providing active airflow across the card to help dissipate heat during gaming and other intensive applications. Its compact dimensions of 236 × 126 × 50 mm make the RTX 5070 VENTUS 2X OC suitable for a variety of desktop configurations where case space may be more limited than with larger triple-fan graphics cards. The card weighs approximately 774g, providing a relatively compact physical design while retaining a substantial cooling solution. For users building a modern gaming PC, this combination of dual-fan cooling, practical dimensions and Blackwell-based graphics performance provides a versatile solution for performance-focused systems.

Advanced Display Connectivity

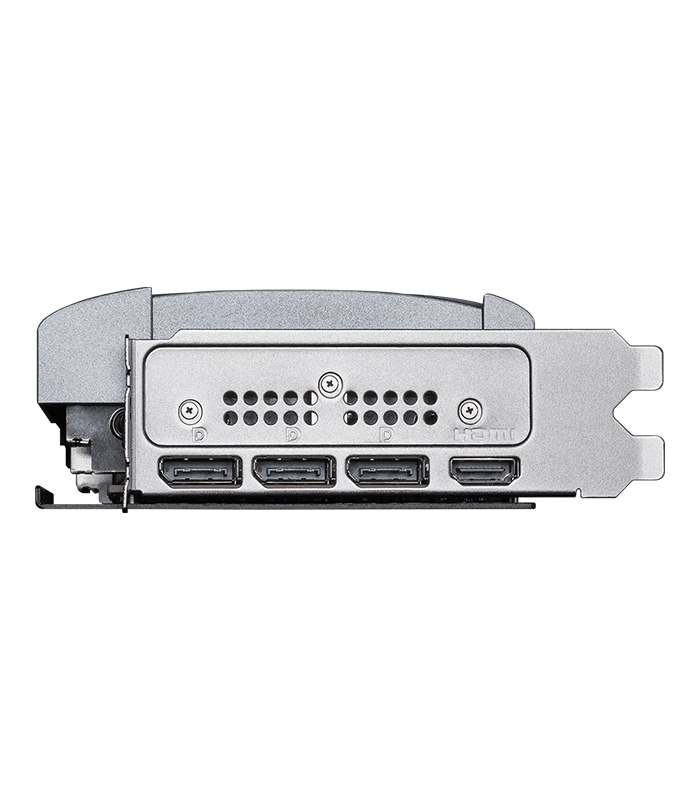

The MSI GeForce RTX 5070 12G VENTUS 2X OC provides modern display connectivity through 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs. The card supports up to four displays simultaneously, making it suitable for multi-monitor gaming, productivity and content-creation setups. Its maximum digital resolution is specified at 7,680 × 4,320, supporting high-resolution display configurations when paired with compatible monitors and connections. The combination of DisplayPort 2.1b and HDMI 2.1b provides flexibility for connecting modern gaming monitors and high-resolution displays, while the four available outputs allow users to build more expansive desktop environments. The card also supports G-SYNC, providing compatibility with compatible displays using NVIDIA's adaptive synchronisation technology. This makes the VENTUS 2X OC a flexible graphics solution for users who want to combine high-performance gaming with modern multi-display connectivity.

PCI Express 5.0 and 650W Recommended PSU

The RTX 5070 VENTUS 2X OC uses a PCI Express 5.0 interface and requires a single 16-pin power connector. MSI specifies a 650W recommended power supply, while the graphics card itself has a stated power consumption of 250W. The modern 16-pin connection provides the required power input for the GPU, while PCI Express 5.0 provides the high-bandwidth interface between the graphics card and compatible motherboard. When planning an installation, users should also take the card's 236 × 126 × 50 mm dimensions into account to ensure sufficient clearance inside the chosen PC case. The RTX 5070 supports DirectX 12 Ultimate and OpenGL 4.6, providing compatibility with modern graphics APIs used by contemporary games and applications. These specifications make it well suited to modern gaming-focused desktop platforms.

High-Performance RTX 5070 Gaming Platform

Combining the NVIDIA GeForce RTX 5070, Blackwell architecture, 6,144 CUDA cores and 12GB of 28 Gbps GDDR7 memory, the MSI GeForce RTX 5070 12G VENTUS 2X OC provides a modern graphics solution for demanding gaming and everyday performance applications. Its boost clock reaches 2,542 MHz, with an Extreme Performance setting of up to 2,557 MHz through MSI Center. The dual-fan cooling system is designed around a 250W power specification, while the compact 236 × 126 × 50 mm dimensions make the card practical for a wide range of PC cases. With PCI Express 5.0, DisplayPort 2.1b, HDMI 2.1b, G-SYNC support and up to four displays, it offers a versatile combination of performance and connectivity. The recommended 650W PSU provides a clear system power requirement for building a compatible RTX 5070 desktop configuration.
