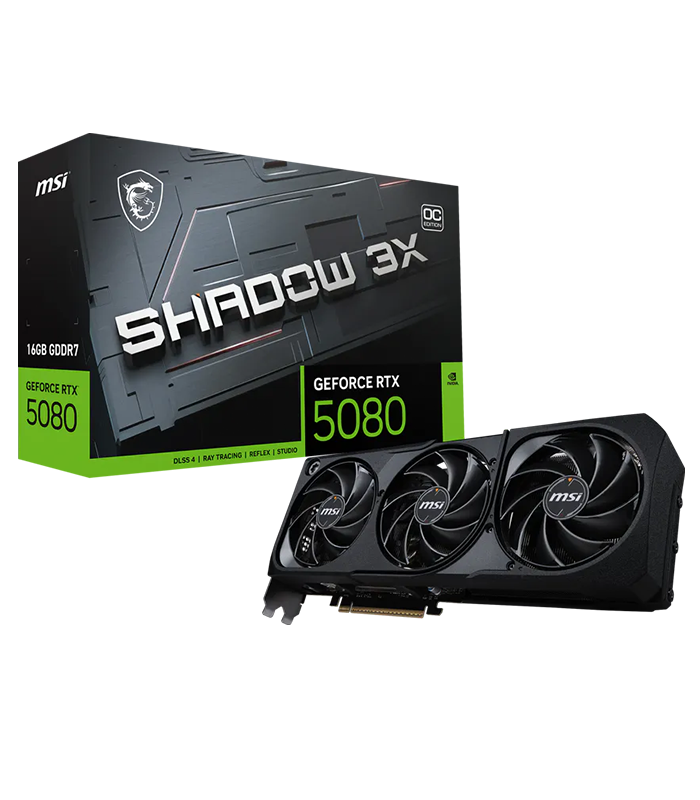

Graphics Card MSI Shadow RTX 5080

NVIDIA GeForce RTX 5080 Blackwell Graphics

The MSI GeForce RTX 5080 16G SHADOW 3X OC is a high-performance graphics card built on the NVIDIA Blackwell architecture, combining 10,752 CUDA cores with 16GB of GDDR7 graphics memory. Its 256-bit memory interface and 30 Gbps memory speed provide a high-bandwidth foundation for demanding gaming, creative applications and other GPU-intensive workloads. The card uses a PCI Express 5.0 interface and features a boost clock of up to 2,640 MHz, with MSI Center enabling an Extreme Performance mode reaching up to 2,655 MHz. This combination of Blackwell architecture, high-speed GDDR7 memory and substantial CUDA core capacity makes the RTX 5080 SHADOW 3X OC a powerful choice for users building a high-end gaming PC or workstation around modern graphics workloads.

16GB GDDR7 High-Speed Memory

With 16GB of GDDR7 memory operating at up to 30 Gbps, the RTX 5080 SHADOW 3X OC provides a substantial memory platform for modern graphics workloads. The 256-bit memory bus gives the card a wide interface between the GPU and its dedicated graphics memory, supporting the demands of high-resolution gaming and GPU-accelerated applications. The large memory capacity is particularly useful for demanding visual workloads where detailed assets, high-resolution textures and complex graphical data require substantial dedicated VRAM. Combined with the NVIDIA Blackwell architecture and 10,752 CUDA cores, the memory subsystem forms an important part of the card's overall performance platform. For users targeting demanding gaming configurations, content creation or other graphics-intensive applications, the RTX 5080 provides a high-capacity GDDR7 solution designed around the requirements of modern GPU workloads.

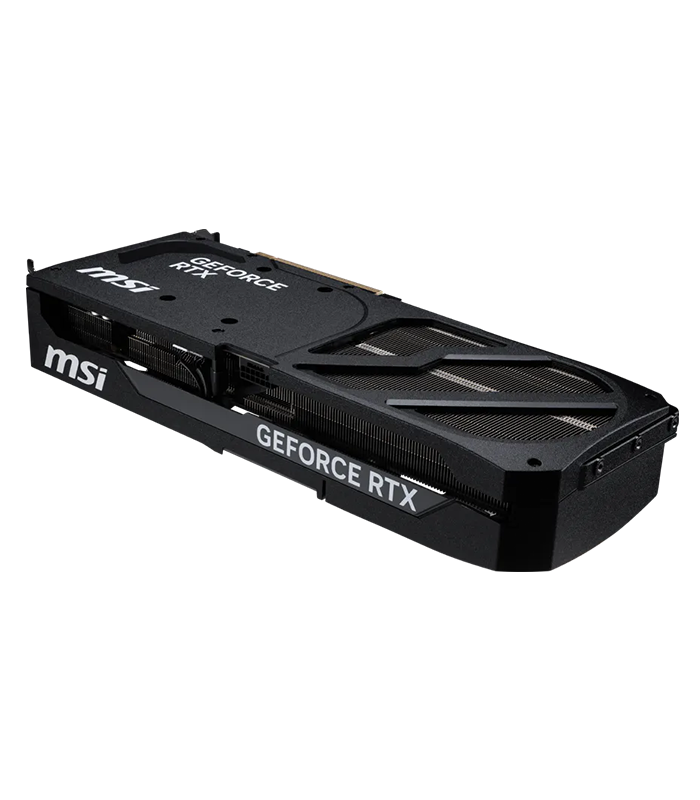

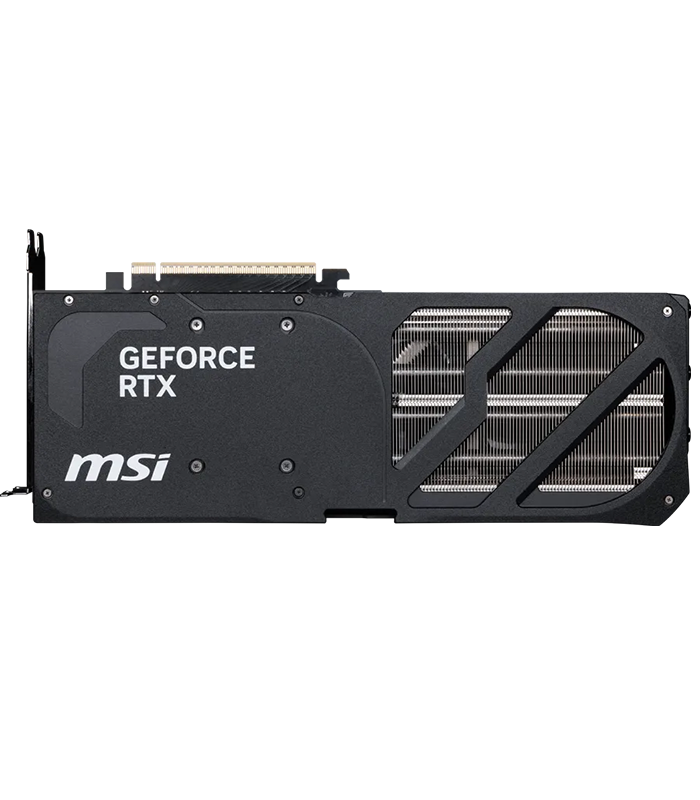

MSI Triple-Fan Cooling Design

The SHADOW 3X OC uses a triple-fan cooling configuration designed to manage the thermal demands of a high-performance 360W graphics card. The card has a specified power consumption of 360W, making effective thermal management an important part of its design. The three-fan cooler works across the graphics card's heatsink assembly to provide airflow over the internal cooling hardware during demanding workloads. With dimensions of 303 × 121 × 49mm and a weight of 1,046g, the card has a substantial physical presence and should be considered when selecting a compatible PC case. Its combination of a triple-fan cooler, high-performance GPU architecture and 360W power specification makes the SHADOW 3X OC suited to high-end systems where cooling capacity and case compatibility are important considerations.

Boost Clock up to 2,640 MHz

The MSI RTX 5080 SHADOW 3X OC features a specified boost clock of up to 2,640 MHz, with an additional Extreme Performance mode reaching up to 2,655 MHz through MSI Center. These clock specifications provide the GPU with a high operating frequency designed for demanding graphics workloads. The card's 10,752 CUDA cores work alongside its Blackwell architecture and 16GB GDDR7 memory to provide the underlying processing resources required for modern gaming and GPU-accelerated applications. The Extreme Performance clock is available through MSI Center, giving users an additional operating mode beyond the standard boost specification. The combination of high clock speeds, substantial CUDA core capacity and high-speed GDDR7 memory gives the RTX 5080 SHADOW 3X OC a specification profile designed for high-end desktop systems where graphics performance is a central part of the overall configuration.

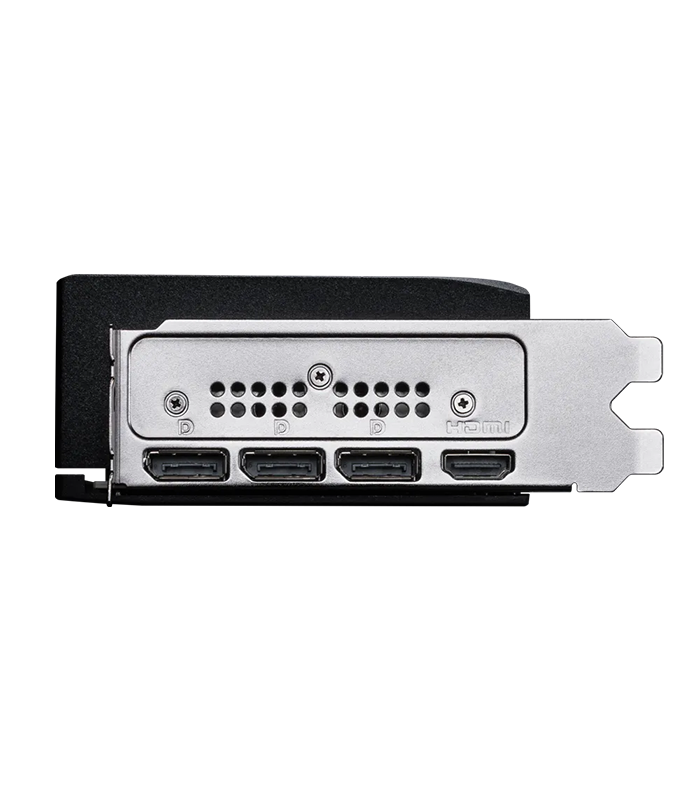

Advanced Display Connectivity

The graphics card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four displays simultaneously. Its specified maximum digital resolution reaches 7,680 × 4,320, providing support for extremely high-resolution display configurations when paired with compatible monitors. The card also supports NVIDIA G-SYNC, helping compatible displays provide synchronised visual output for supported gaming configurations. Alongside its display connectivity, the RTX 5080 SHADOW 3X OC supports DirectX 12 Ultimate and OpenGL 4.6, providing compatibility with modern graphics APIs used across current games and professional applications. The combination of multiple high-bandwidth display outputs, support for up to four monitors and high maximum digital resolution makes the card suitable for users building advanced gaming, multi-monitor and graphics-focused desktop environments.

PCIe 5.0 and 850W Recommended PSU

The MSI GeForce RTX 5080 16G SHADOW 3X OC uses a PCI Express 5.0 interface and requires a single 16-pin power connector. MSI specifies a recommended 850W power supply, reflecting the card's 360W power consumption and its position within a high-performance desktop configuration. The physical dimensions of 303 × 121 × 49mm should also be checked against the available GPU clearance of the chosen case before installation. With its Blackwell architecture, 10,752 CUDA cores, 16GB GDDR7 memory, 2,640 MHz boost clock and triple-fan cooling system, the SHADOW 3X OC is designed as a high-end graphics solution for demanding modern systems. Its combination of PCIe 5.0 connectivity, advanced display outputs and substantial power requirements makes it particularly suited to carefully configured gaming and workstation builds.
