Case XPG Valor Mesh

Compact Mid-Tower Design

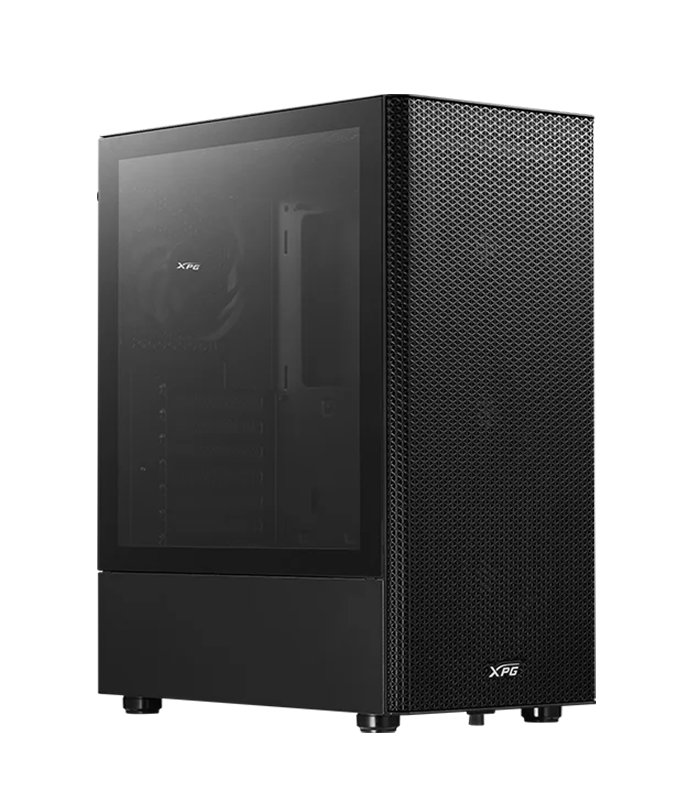

The XPG VALOR MESH is a compact mid-tower PC case designed to provide a practical balance between component compatibility, airflow and efficient use of desk space. Measuring 460 × 210 × 371mm, the chassis supports ATX, Micro-ATX and Mini-ITX motherboards, making it suitable for a wide range of gaming and everyday PC builds. The chassis is constructed from SPCC steel and features a 3mm tempered-glass side panel, providing a clear view of the installed components. Its compact dimensions make the VALOR MESH particularly suitable for users who want the flexibility of an ATX platform without moving to a significantly larger case. The seven horizontal expansion slots provide room for a wide range of graphics cards and PCIe hardware, while the internal layout is designed around straightforward component installation and maintenance.

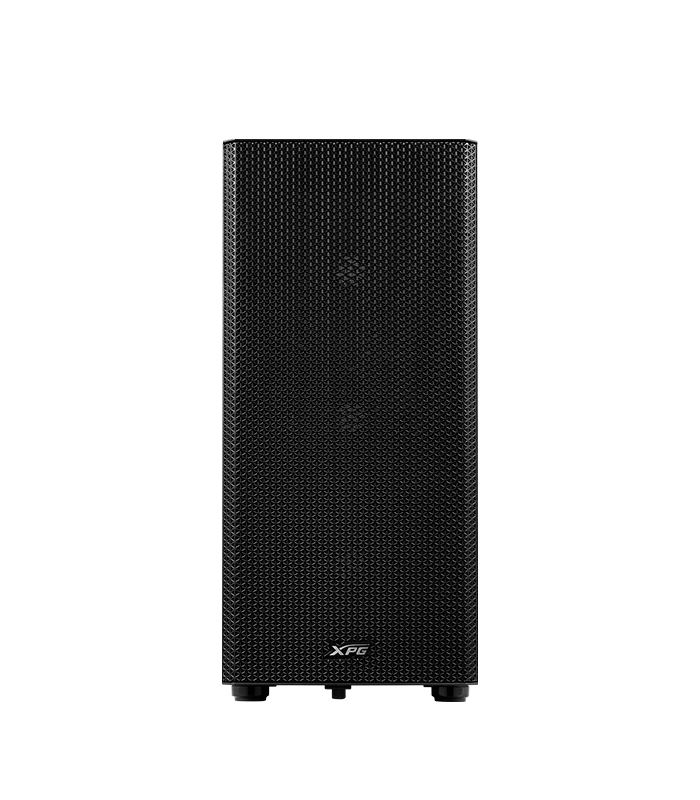

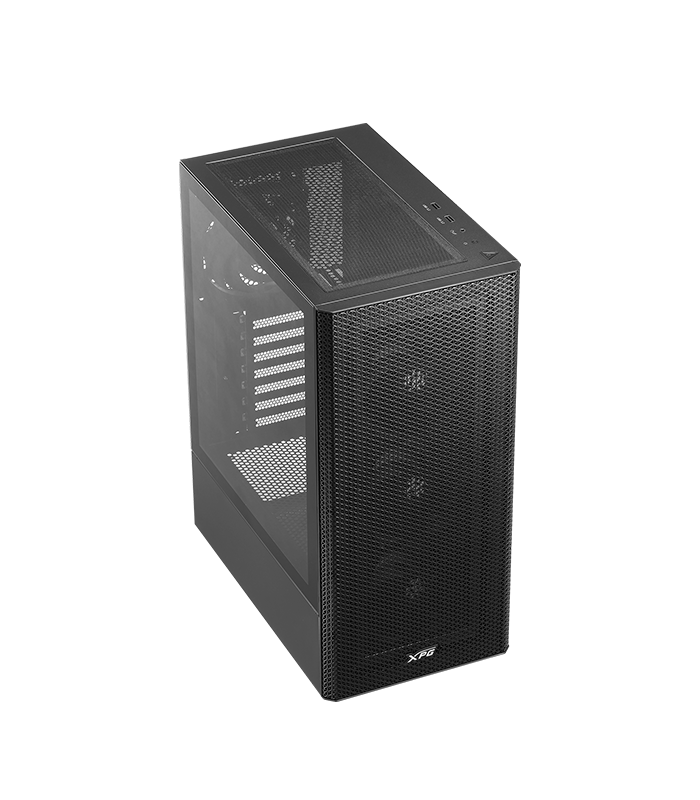

Mesh Front Panel and Airflow

Airflow is a central feature of the XPG VALOR MESH, with its mesh front design allowing fresh air to enter the chassis efficiently. The case comes with four pre-installed 120mm fans, including three positioned at the front for intake and one at the rear for exhaust. This configuration creates a straightforward front-to-rear airflow path that helps move warm air away from the CPU, graphics card and other components. The front panel and filter are designed to be removable, making cleaning and maintenance more convenient. Additional fan positions are available for users who want to expand the cooling configuration, with support for up to three 120mm or two 140mm fans at the front, two 120mm or two 140mm fans at the top, and one 120mm fan at the rear. This gives the VALOR MESH flexibility for different cooling requirements.

Flexible Liquid Cooling Support

The XPG VALOR MESH is also designed to accommodate liquid cooling systems, providing several radiator mounting options within its compact chassis. The front supports radiators up to 360mm, 280mm or 240mm, while the top supports a 240mm radiator and the rear supports a 120mm radiator. This gives builders the option to use either a traditional air cooler or an all-in-one liquid cooler depending on the processor and overall build configuration. For air cooling, the case supports CPU coolers up to 166mm in height, allowing compatibility with a broad selection of tower-style CPU coolers. The combination of multiple radiator positions and additional fan mounting locations means the VALOR MESH can be configured around different thermal requirements. Whether building a mainstream gaming PC or a more performance-focused system, the internal cooling layout provides useful flexibility.

Graphics Card and Component Compatibility

Despite its compact mid-tower dimensions, the VALOR MESH provides useful clearance for modern gaming hardware. The chassis supports graphics cards up to 335mm in length, although this clearance is reduced to 305mm when the pre-installed front fans are installed. This distinction is important when planning a build with a larger graphics card, particularly where a high-performance GPU is combined with the supplied front cooling configuration. The CPU cooler clearance reaches 166mm, while the power supply can measure up to 180mm, or between 160mm and 180mm depending on the position of the HDD/SSD tray. The case also provides two 3.5-inch drive bays and 2+1 storage positions combining 3.5-inch and 2.5-inch drives, giving builders options for both modern SSD storage and traditional hard drives.

Practical Connectivity and Storage

The front I/O of the XPG VALOR MESH provides the essential connections for everyday PC use without adding unnecessary complexity. It includes two USB 3.2 Gen 1 Type-A ports for connecting peripherals and external storage, together with a 3.5mm hybrid audio and microphone jack for compatible headsets. Dedicated power and reset buttons are also positioned on the front I/O area for convenient access during normal use or troubleshooting. Internally, the case provides flexible storage support with two 3.5-inch drive bays and additional 2.5-inch storage compatibility through its 2+1 combination tray arrangement. The included HDD cage can accommodate additional drives underneath the power-supply shroud, allowing users to expand storage while keeping the main component area organised. This makes the VALOR MESH suitable for both gaming-focused systems and general-purpose PCs requiring additional storage capacity.

Clean Gaming Build with XPG Design

The XPG VALOR MESH combines a compact footprint with the component support expected from a modern mid-tower chassis, making it a practical foundation for gaming PCs and performance-oriented desktop systems. Its ATX, Micro-ATX and Mini-ITX compatibility provides flexibility when selecting a motherboard, while the four pre-installed 120mm fans and mesh front panel provide a strong starting point for airflow. The 3mm tempered-glass side panel keeps the internal hardware visible, allowing the finished build to remain a focal point of a gaming setup. With support for graphics cards up to 335mm, CPU coolers up to 166mm, front radiators up to 360mm and multiple storage configurations, the VALOR MESH offers useful room for a wide range of components. Its combination of compact dimensions, cooling support and straightforward connectivity makes it a versatile chassis for modern PC builds.
